I ordered the xk x500-a aircam and wires have disconnected from the gimbal controller

Daniel GamacheDaniel Gamache Club Members Posts: 10

The wires connected to the plug into the gimbal controller and cannot be reconnected to it. I need the plug with pigtails coming out of it to solder the wires to the pigtails to be able to fix it. Anyone know where I can find one of these connectors with pigtails? It is the four wire connector. This seems to be an extremely fragile connection and they pulled out on the very first flight.

Answers

  • WTWUKWTWUK CornwallClub Members Posts: 12,851 ✭✭✭

    Got a decent picture of the wiring?

  • Daniel GamacheDaniel Gamache Club Members Posts: 10

    Thanks. I will try to take one later and post it the next time I get to the library.

  • Daniel GamacheDaniel Gamache Club Members Posts: 10

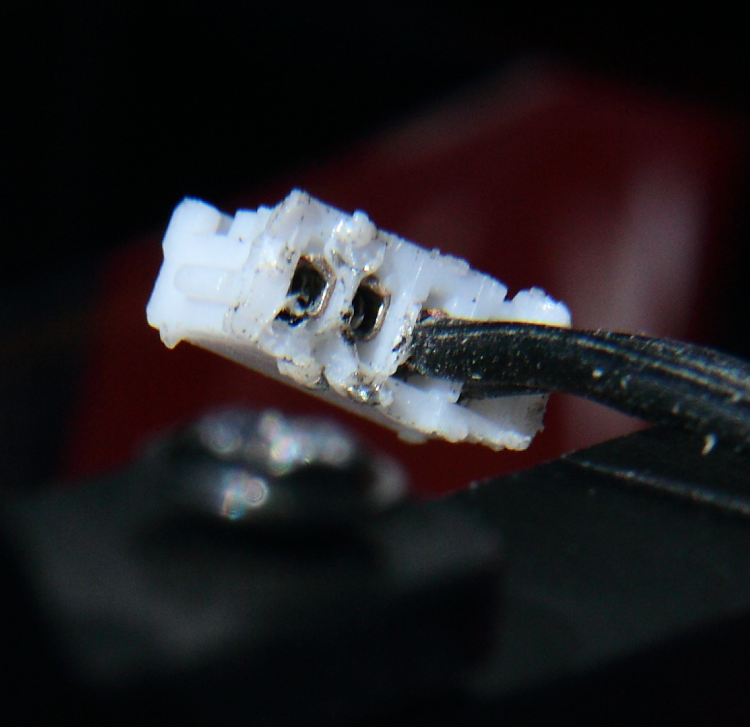

    Here is the first image of the plug

  • Daniel GamacheDaniel Gamache Club Members Posts: 10

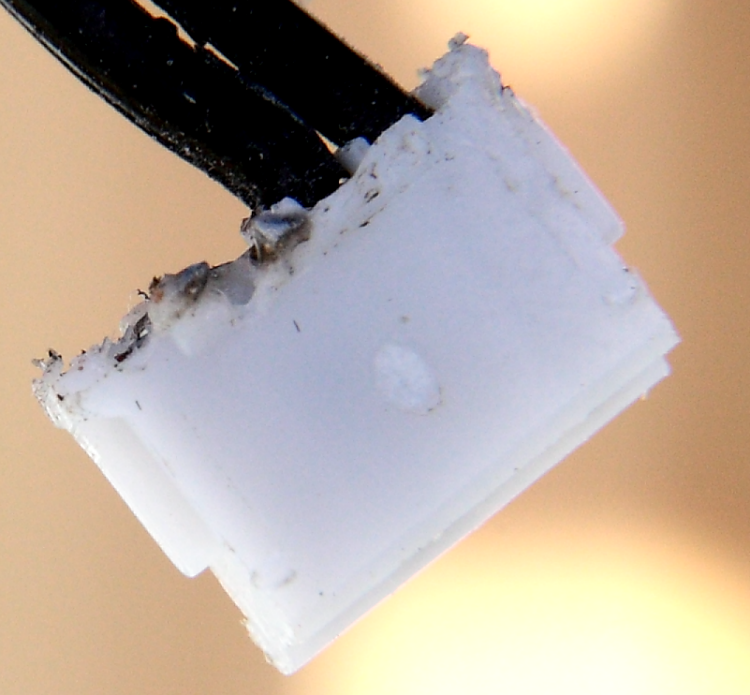

    Here is the other side of the plug.

  • Daniel GamacheDaniel Gamache Club Members Posts: 10

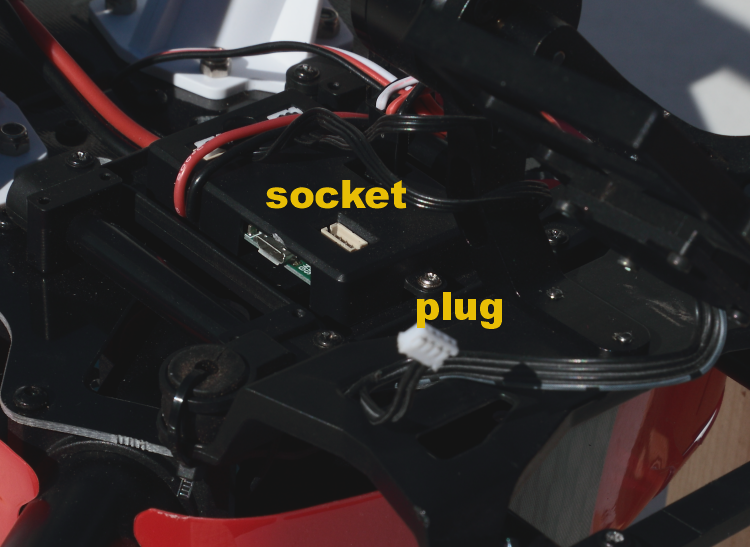

    This image shows the positions of the plug and it's socket

  • WTWUKWTWUK CornwallClub Members Posts: 12,851 ✭✭✭

    Assaulted with a soldering iron ... dang! Lol!

    Looks like JST ZH connectors, but cannot tell the pitch of yours. Can you measure how far the pins are apart?

  • Daniel GamacheDaniel Gamache Club Members Posts: 10

    https://hobbyking.com/en_us/200mm-5-pin-molex-jr-to-4-pin-white-connector-lead.html Can I cut the black part off and splice into the wires coming out of the white connector? Is this the same connector as shown in my pictures?

  • WTWUKWTWUK CornwallClub Members Posts: 12,851 ✭✭✭

    If the white connector is the same, then sure you can.

  • Daniel GamacheDaniel Gamache Club Members Posts: 10

    How can I find out if the white connector is the same. Will Hobby King customer service be able to tell m

  • WTWUKWTWUK CornwallClub Members Posts: 12,851 ✭✭✭

    If you measure the pin spacing it will help get the correct plugs.

  • Daniel GamacheDaniel Gamache Club Members Posts: 10

    Thanks WTWUK I will try to get that pin spacing. Gotta dig through the shed for my digital calipers. I really do appreciate the help.
